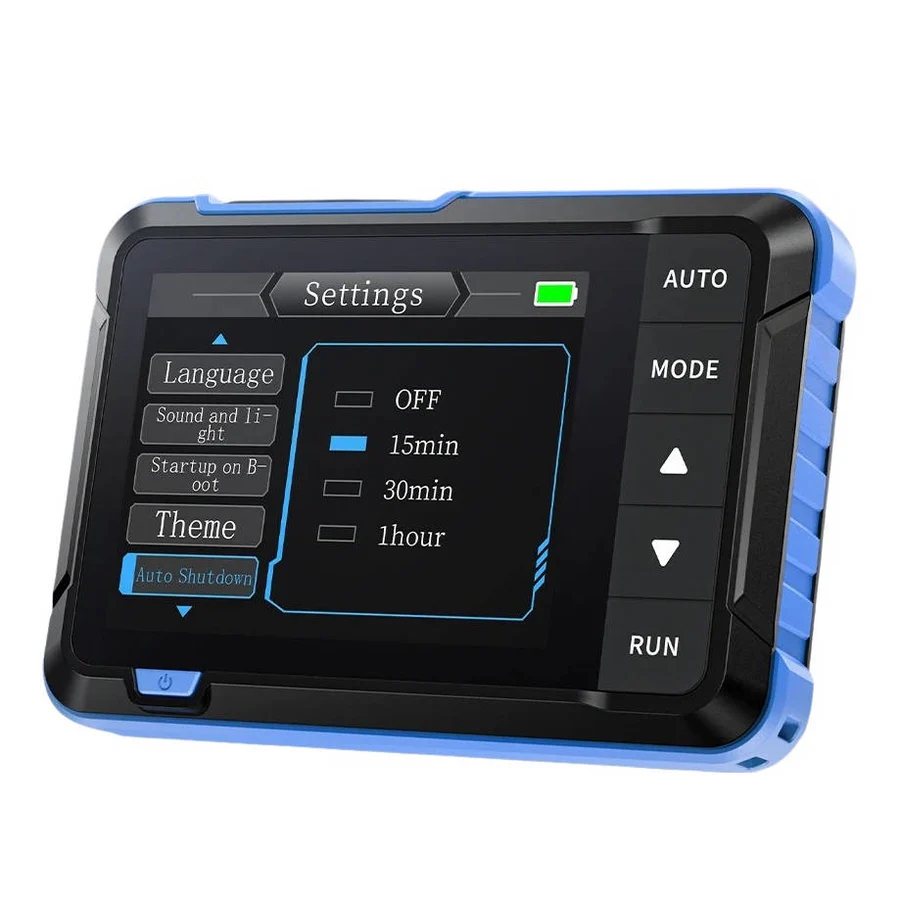

Compact Handheld Oscilloscope for Electronics

Unlock Efficient Circuit Testing with Our Compact Digital Oscilloscope

Take your circuit testing to the next level with our lightweight and portable digital oscilloscope. Featuring instant AUTO configuration and a vibrant 2.8-inch LCD display, you can quickly capture signals without any wait. This means you can work more efficiently and get the results you need fast.

Choose the Right Model for Your Needs

We offer two models to suit your requirements: the Standard and the Pro edition. The Standard model is perfect for routine diagnostics, while the Pro edition provides elevated sampling rates and bandwidth for more advanced testing. This means you can choose the model that best fits your needs and budget.

Reliable and Versatile

Both models come equipped with an integrated signal generator, can safely measure voltage up to ±400 V, and are powered by a rechargeable battery that lasts for up to 4 hours during continuous use. This means you can rely on our oscilloscope to get the job done, whether you're working in the field or in the lab.

Key Features and Benefits

• Accurate Voltage Measurement: Measure voltage safely up to ±400 V with our built-in safety circuits, giving you peace of mind and accurate results.
• Real-Time Sampling Rate: Choose from 5 MS/s (Standard) or 48 MS/s (Pro) for precise signal acquisition, helping you to capture even the most complex signals.
• Bandwidth Spectrum: Select from 1 MHz (Standard) or 10 MHz (Pro) for high-frequency evaluations, allowing you to test a wide range of signals.
• Quick AUTO Mode: Instantly adjust settings to display waveforms with a single click, saving you time and effort.
• Bright Display: Our 2.8-inch LCD with 320×240 resolution provides clear visibility, making it easy to read and understand your results.
• Long Battery Life: Our 1000 mAh lithium-ion battery enables up to 4 hours of operation, so you can work without interruption.
• Versatile Trigger Modes: Includes Single, Normal, and Auto options for diverse analysis, giving you the flexibility to test a wide range of signals.
• Integrated Signal Generator: Features 10 kHz (Standard) or 50 kHz (Pro), allowing you to generate signals for testing and analysis.

Product Details

• Display: 2.8-inch LCD
• Screen Resolution: 320×240
• Battery Capacity: 1000 mAh lithium
• Operating Duration: Up to 4 hours
• Voltage Measurement Range: ±400 V
• Sampling Rate: 5 MS/s (Standard), 48 MS/s (Pro)
• Bandwidth: 1 MHz (Standard), 10 MHz (Pro)
• Signal Generator Frequency: 10 kHz (Standard), 50 kHz (Pro)
• Weight: 0.5 lbs

What's Included

• 1 × Portable Digital Oscilloscope

Frequently Asked Questions

Q: What's the difference between the Standard and Pro models?
A: The Standard model offers 5 MS/s sampling with a bandwidth of 1 MHz, while the Pro model provides 48 MS/s sampling and 10 MHz bandwidth, making it ideal for more advanced testing.

Q: How long does the battery last?
A: The integrated lithium battery can provide power for up to 4 hours of steady use, giving you plenty of time to complete your tests.

Q: Can it measure both analog and digital signals?
A: Yes, our oscilloscope can test both analog and digital signals, making it a versatile tool for a wide range of applications.

Q: Is it safe to measure high voltages?
A: Yes, our oscilloscope can measure voltage safely up to ±400 V, thanks to its built-in safety circuits, giving you peace of mind and protecting you from potential hazards.
